//支持lambda函数接口
import java.util.function.Consumer;
public interface Iterable<T> {
  //iterator()方法
    Iterator<T> iterator();
    default void forEach(Consumer<? super T> action) {
        Objects.requireNonNull(action);
        for (T t : this) {
            action.accept(t);
        }
    }
    default Spliterator<T> spliterator() {
        return Spliterators.spliteratorUnknownSize(iterator(), 0);
    }
}

package java.util;
import java.util.function.Predicate;
import java.util.stream.Stream;
import java.util.stream.StreamSupport;

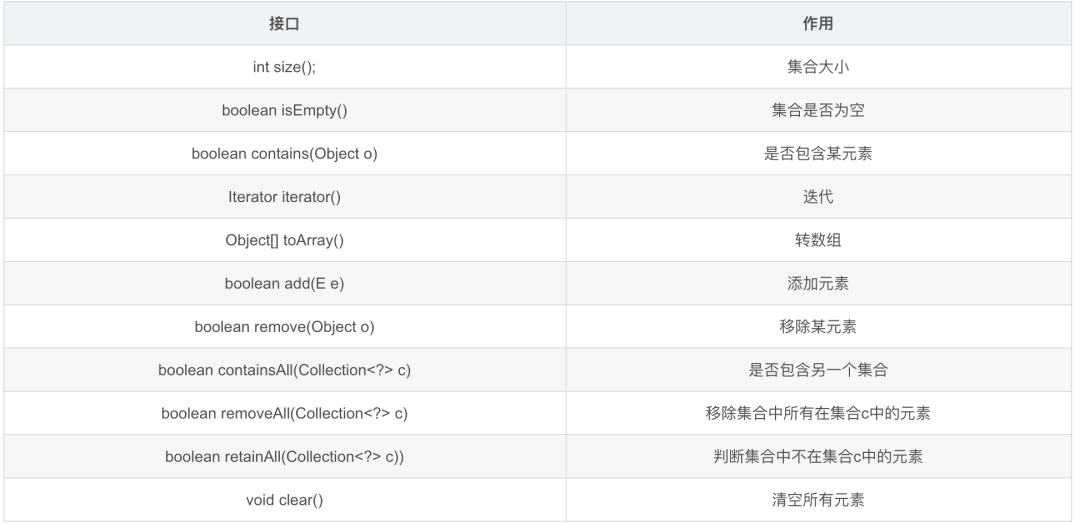

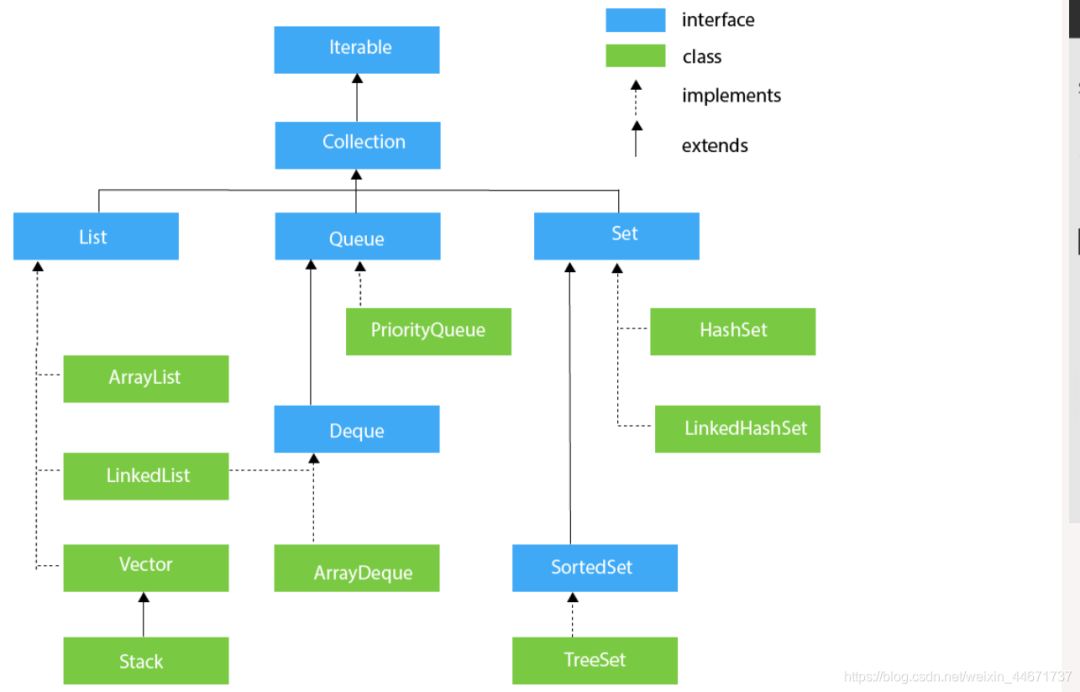

public interface Collection<E> extends Iterable<E> {
    int size();
    boolean isEmpty();
    boolean contains(Object o);
    Iterator<E> iterator();
    Object[] toArray();
    boolean add(E e);
    boolean remove(Object o);
    boolean containsAll(Collection<?> c);
    boolean removeAll(Collection<?> c);
    default boolean removeIf(Predicate<? super E> filter) {
        Objects.requireNonNull(filter);
        boolean removed = false;
        final Iterator<E> each = iterator();
        while (each.hasNext()) {
            if (filter.test(each.next())) {
                each.remove();
                removed = true;
            }
        }
        return removed;
    }
    boolean retainAll(Collection<?> c);
    void clear();
    int hashCode();
    @Override
    default Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, 0);
    }
    default Stream<E> stream() {
        return StreamSupport.stream(spliterator(), false);
    }
    default Stream<E> parallelStream() {
        return StreamSupport.stream(spliterator(), true);
    }
}

package java.util;

import java.util.function.UnaryOperator;
public interface List<E> extends Collection<E> {
    <T> T[] toArray(T[] a);
    boolean addAll(Collection<? extends E> c);
    boolean addAll(int index, Collection<? extends E> c);
    default void replaceAll(UnaryOperator<E> operator) {
        Objects.requireNonNull(operator);
        final ListIterator<E> li = this.listIterator();
        while (li.hasNext()) {
            li.set(operator.apply(li.next()));
        }
    }
    default void sort(Comparator<? super E> c) {
        Object[] a = this.toArray();
        Arrays.sort(a, (Comparator) c);
        ListIterator<E> i = this.listIterator();
        for (Object e : a) {
            i.next();
            i.set((E) e);
        }
    }
    boolean equals(Object o);
    E get(int index);
    E set(int index, E element);
    void add(int index, E element);
    int indexOf(Object o);
    int lastIndexOf(Object o);
    ListIterator<E> listIterator();
    List<E> subList(int fromIndex, int toIndex);
    @Override
    default Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, Spliterator.ORDERED);
    }
}

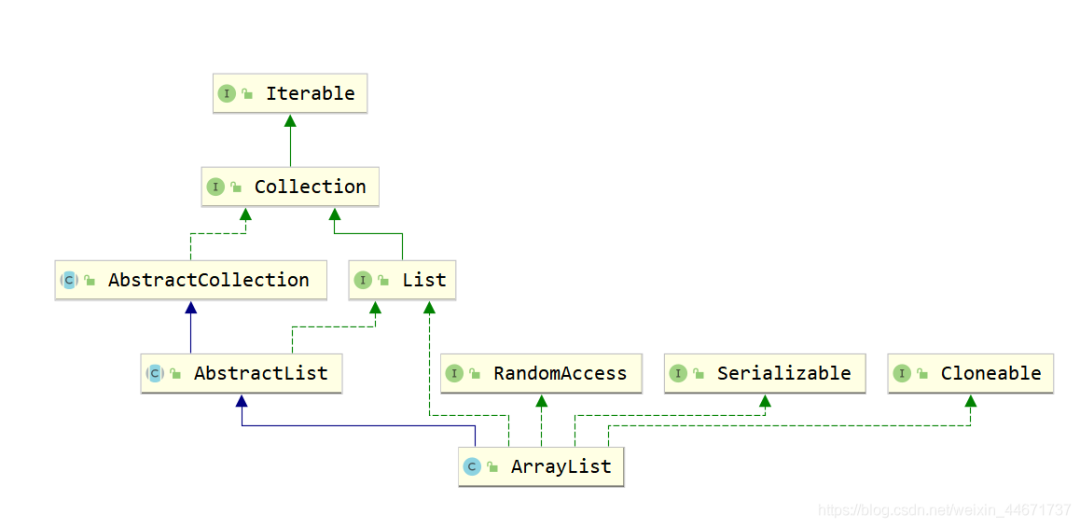

private static final Object[] EMPTY_ELEMENTDATA = {};
private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {}
//真正存放元素的数组
transient Object[] elementData; // non-private to simplify nested class access
private int size;

public ArrayList(int initialCapacity) {
    if (initialCapacity > 0) {
        this.elementData = new Object[initialCapacity];
    } else if (initialCapacity == 0) {
        this.elementData = EMPTY_ELEMENTDATA;
    } else {
        throw new IllegalArgumentException("Illegal Capacity: "+
                                           initialCapacity);
    }
}
public ArrayList() {
    this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
}

public boolean add(E e) {
    ensureCapacityInternal(size + 1); // Increments modCount!!
    elementData[size++] = e;
    return true;
}

private static int calculateCapacity(Object[] elementData, int minCapacity) {
    if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
        //DEFAULT_CAPACITY是10
        return Math.max(DEFAULT_CAPACITY, minCapacity);
    }
    return minCapacity;
}

int newCapacity = oldCapacity + (oldCapacity >> 1);

private void grow(int minCapacity) {
    // overflow-conscious code
    int oldCapacity = elementData.length;
    int newCapacity = oldCapacity + (oldCapacity >> 1);
    if (newCapacity - minCapacity < 0)
        newCapacity = minCapacity;
    if (newCapacity - MAX_ARRAY_SIZE > 0)
        newCapacity = hugeCapacity(minCapacity);
    // minCapacity is usually close to size, so this is a win:
    elementData = Arrays.copyOf(elementData, newCapacity);
}

public static native void arraycopy(Object src, int  srcPos,
                                        Object dest, int destPos,
                                        int length);

private void writeObject(java.io.ObjectOutputStream s)
    throws java.io.IOException{
    // Write out element count, and any hidden stuff
    int expectedModCount = modCount;
    s.defaultWriteObject();

    // Write out size as capacity for behavioural compatibility with clone()
    s.writeInt(size);

    // Write out all elements in the proper order.
    for (int i=0; i<size; i++) {
        s.writeObject(elementData[i]);
    }

    if (modCount != expectedModCount) {
        throw new ConcurrentModificationException();
    }
}

/**
 * Reconstitute the <tt>ArrayList</tt> instance from a stream (that is,
 * deserialize it).
 */
private void readObject(java.io.ObjectInputStream s)
    throws java.io.IOException, ClassNotFoundException {
    elementData = EMPTY_ELEMENTDATA;

    // Read in size, and any hidden stuff
    s.defaultReadObject();

    // Read in capacity
    s.readInt(); // ignored

    if (size > 0) {
        // be like clone(), allocate array based upon size not capacity
        int capacity = calculateCapacity(elementData, size);
        SharedSecrets.getJavaOISAccess().checkArray(s, Object[].class, capacity);
        ensureCapacityInternal(size);

        Object[] a = elementData;
        // Read in all elements in the proper order.
        for (int i=0; i<size; i++) {
            a[i] = s.readObject();
        }
    }
}

protected transient int modCount = 0;

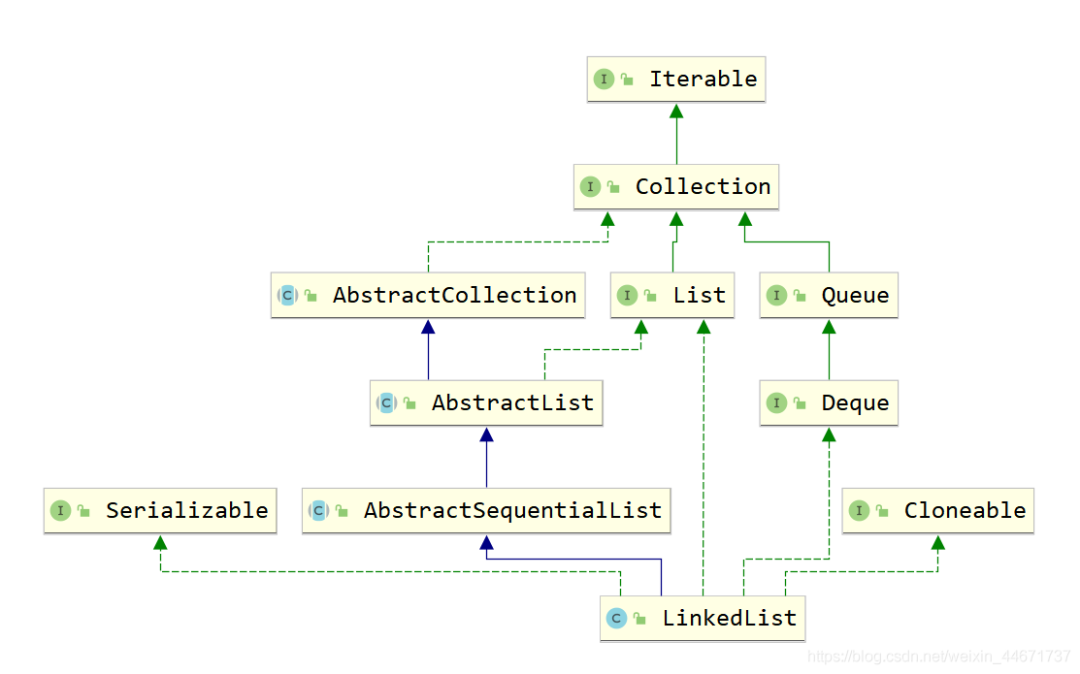

transient Node<E> first;

/**
 * Pointer to last node.
 * Invariant: (first == null && last == null) ||
 * (last.next == null && last.item != null)
 */
transient Node<E> last;

private static class Node<E> {
    E item;
    Node<E> next;
    Node<E> prev;

    Node(Node<E> prev, E element, Node<E> next) {
        this.item = element;
        this.next = next;
        this.prev = prev;
    }
}

transient int size = 0;
transient Node<E> first;
transient Node<E> last;
public LinkedList() {
}

/**
 * Links e as first element. 头插法
 */
private void linkFirst(E e) {
    final Node<E> f = first;
    final Node<E> newNode = new Node<>(null, e, f);
    first = newNode;
    if (f == null)
        last = newNode;
    else
        f.prev = newNode;
    size++;
    modCount++;
}

/**
 * Links e as last element. 尾插法
 */
void linkLast(E e) {
    final Node<E> l = last;
    final Node<E> newNode = new Node<>(l, e, null);
    last = newNode;
    if (l == null)
        first = newNode;
    else
        l.next = newNode;
    size++;
    modCount++;
}

public E get(int index) {
    checkElementIndex(index);
    return node(index).item;
}

Node<E> node(int index) {
    // assert isElementIndex(index);
    //判断index更靠近头部还是尾部
    if (index < (size >> 1)) {
        Node<E> x = first;
        for (int i = 0; i < index; i++)
            x = x.next;
        return x;
    } else {
        Node<E> x = last;
        for (int i = size - 1; i > index; i--)
            x = x.prev;
        return x;
    }
}

public E set(int index, E element) {
    checkElementIndex(index);
    Node<E> x = node(index);
    E oldVal = x.item;
    x.item = element;
    return oldVal;
}

public boolean add(E e) {
    linkLast(e);
    return true;
}

//存放元素的数组
protected Object[] elementData;
//有效元素数量，小于等于数组长度
protected int elementCount;
//容量增加量，和扩容相关
protected int capacityIncrement;

private void grow(int minCapacity) {
    // overflow-conscious code
    int oldCapacity = elementData.length;
    //扩容大小
    int newCapacity = oldCapacity + ((capacityIncrement > 0) ?
                                     capacityIncrement : oldCapacity);
    if (newCapacity - minCapacity < 0)
        newCapacity = minCapacity;
    if (newCapacity - MAX_ARRAY_SIZE > 0)
        newCapacity = hugeCapacity(minCapacity);
    elementData = Arrays.copyOf(elementData, newCapacity);
}

public synchronized E remove(int index) {
    modCount++;
    if (index >= elementCount)
        throw new ArrayIndexOutOfBoundsException(index);
    E oldValue = elementData(index);

    int numMoved = elementCount - index - 1;
    if (numMoved > 0)
      //复制数组，假设数组移除了中间某元素，后边有效值前移1位
        System.arraycopy(elementData, index+1, elementData, index,
                         numMoved);
                         //引用null ，gc会处理
    elementData[--elementCount] = null; // Let gc do its work

    return oldValue;
}

Stack<String> strings = new Stack<>();
strings.push("aaa");
strings.push("bbb");
strings.push("ccc");
System.err.println(strings.pop());

/**

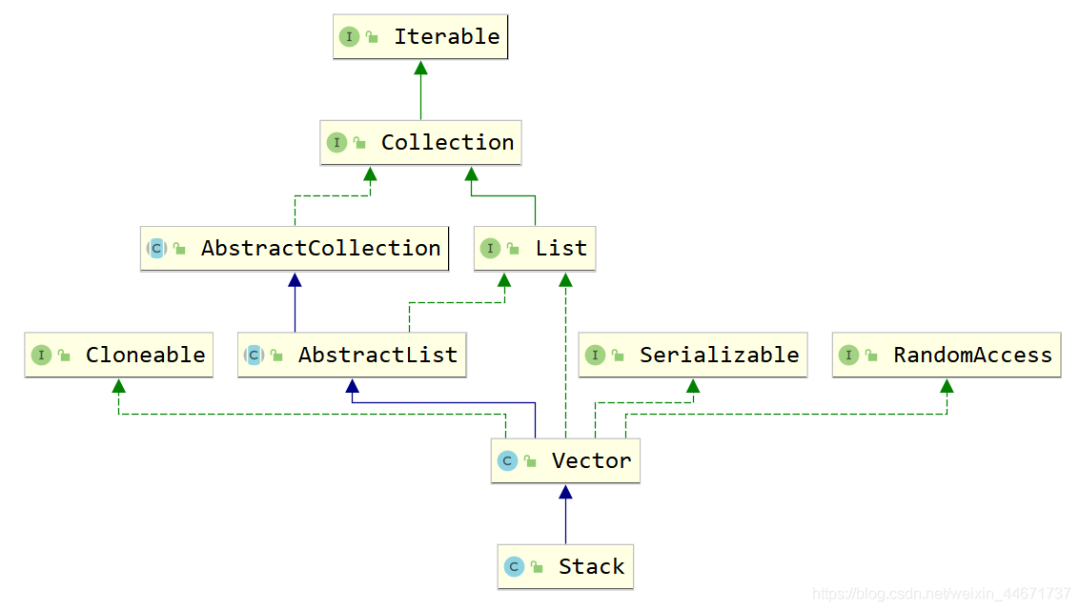

 * Stack源码（Jdk8）
 */
public
class Stack<E> extends Vector<E> {
    public Stack() {
    }
  //入栈，使用的是Vector的addElement方法。
  public E push(E item) {
        addElement(item);
        return item;
    }
    //出栈，找到数组最后一个元素，移除并返回。
    public synchronized E pop() {
        E obj;
        int     len = size();
        obj = peek();
        removeElementAt(len - 1);
        return obj;
    }
    public synchronized E peek() {
        int     len = size();
        if (len == 0)
            throw new EmptyStackException();
        return elementAt(len - 1);
    }
    public boolean empty() {
        return size() == 0;
    }
    public synchronized int search(Object o) {
        int i = lastIndexOf(o);
        if (i >= 0) {
            return size() - i;
        }
        return -1;
    }
    private static final long serialVersionUID = 1224463164541339165L;
}

package java.util;

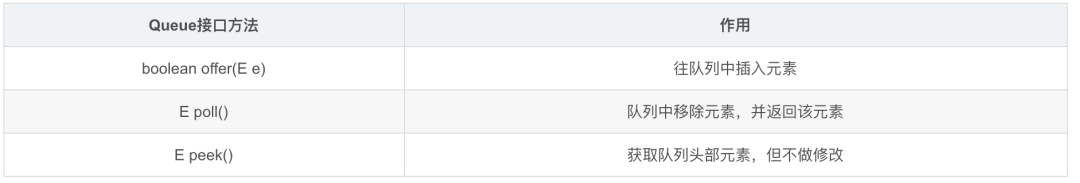

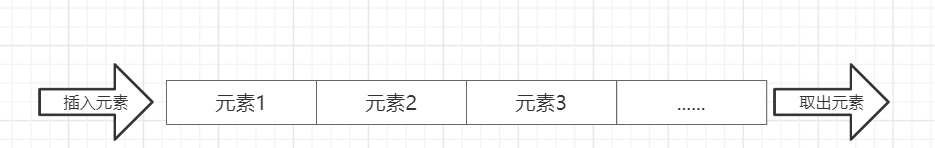

public interface Queue<E> extends Collection<E> {
     //集合中插入元素
    boolean add(E e);
    //队列中插入元素
    boolean offer(E e);
    //移除元素，当集合为空，抛出异常
    E remove();
    //移除队列头部元素并返回，如果为空，返回null
    E poll();
    //查询集合第一个元素，如果为空，抛出异常
    E element();
    //查询队列中第一个元素，如果为空，返回null
    E peek();
}

package java.util;

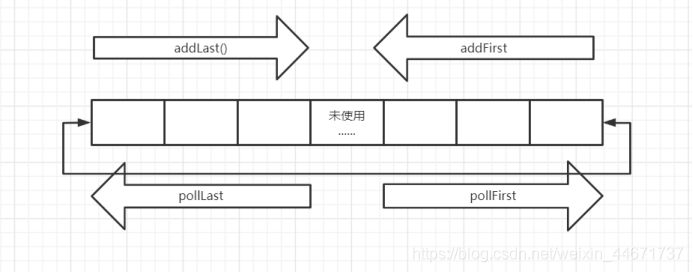

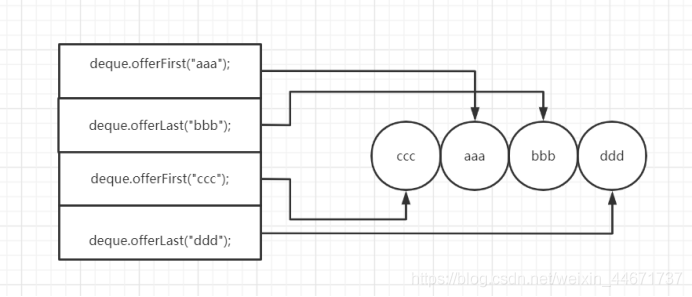

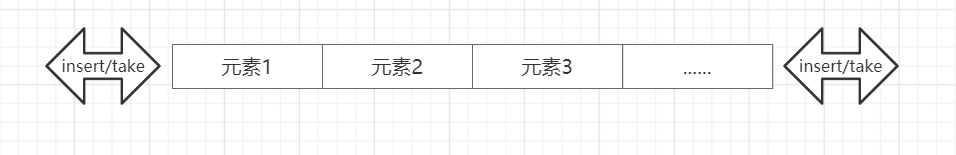

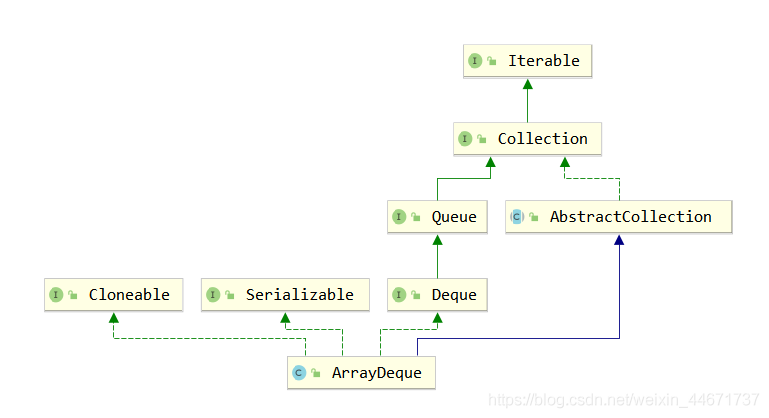

public interface Deque<E> extends Queue<E> {
  //deque的操作方法
    void addFirst(E e);
    void addLast(E e);
    boolean offerFirst(E e);
    boolean offerLast(E e);
    E removeFirst();
    E removeLast();
    E pollFirst();
    E pollLast();
    E getFirst();
    E getLast();
    E peekFirst();
    E peekLast();

    boolean removeFirstOccurrence(Object o);
    boolean removeLastOccurrence(Object o);
    // *** Queue methods ***
    boolean add(E e);
    boolean offer(E e);
    E remove();
    E poll();
    E element();
    E peek();
    // 省略一堆stack接口方法和collection接口方法
}

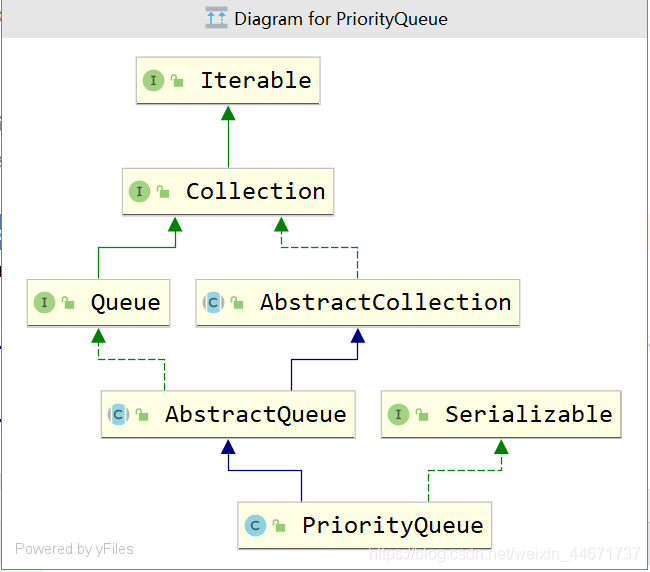

PriorityQueue<Integer> queue = new PriorityQueue<>();
queue.add(20);queue.add(14);queue.add(21);queue.add(8);queue.add(9);
queue.add(11);queue.add(13);queue.add(10);queue.add(12);queue.add(15);
while (queue.size()>0){
    Integer poll = queue.poll();
    System.err.print(poll+"->");
}

// 必须实现Comparable方法，想String,数值本身即可比较
private static class Test implements Comparable<Test>{
    private int a;
    public Test(int a) {
        this.a = a;
    }
    public int getA() {
        return a;
    }
    public void setA(int a) {
        this.a = a;
    }
    @Override
    public String toString() {
        return "Test{" +
                "a=" + a +
                '}';
    }

    @Override
    public int compareTo(Test o) {
        return 0;
    }
}

public static void main(String[] args) {
    PriorityQueue<Test> queue = new PriorityQueue<>();
    queue.add(new Test(20));queue.add(new Test(14));queue.add(new Test(21));queue.add(new Test(8));queue.add(new Test(9));
    queue.add(new Test(11));queue.add(new Test(13));queue.add(new Test(10));queue.add(new Test(12));queue.add(new Test(15));
    while (queue.size()>0){
        Test poll = queue.poll();
        System.err.print(poll+"->");
    }
}

/**
 * 默认容量大小，数组大小
 */
private static final int DEFAULT_INITIAL_CAPACITY = 11;

/**
 * 存放元素的数组
 */
transient Object[] queue; // non-private to simplify nested class access

/**
 * 队列中存放了多少元素
 */
private int size = 0;

/**
 * 自定义的比较规则，有该规则时优先使用，否则使用元素实现的Comparable接口方法。
 */
private final Comparator<? super E> comparator;

/**
 * 队列修改次数，每次存取都算一次修改
 */
transient int modCount = 0; // non-private to simplify nested class access

public boolean offer(E e) {
    if (e == null)
        throw new NullPointerException();
    modCount++;
    int i = size;
    if (i >= queue.length)
        grow(i + 1);
    size = i + 1;
    //i=size，当queue为空的时候
    if (i == 0)
        queue[0] = e;
    else
        siftUp(i, e);
    return true;
}

private void siftUp(int k, E x) {
    if (comparator != null)
        siftUpUsingComparator(k, x);
    else
        siftUpComparable(k, x);
}

private void siftUpComparable(int k, E x) {
    Comparable<? super E> key = (Comparable<? super E>) x;
    while (k > 0) {
      //为什么-1， 思考数组位置0，1，2。0是1和2的父节点
        int parent = (k - 1) >>> 1;
        //父节点
        Object e = queue[parent];
        //当传入的新节点大于父节点则不做处理，否则二者交换
        if (key.compareTo((E) e) >= 0)
            break;
        queue[k] = e;
        k = parent;
    }
    queue[k] = key;
}

public E poll() {
    if (size == 0)
        return null;
    int s = --size;
    modCount++;
    E result = (E) queue[0];
    //s = --size,即原来数组的最后一个元素
    E x = (E) queue[s];
    queue[s] = null;
    if (s != 0)
        siftDown(0, x);
    return result;
}

private void siftDownComparable(int k, E x) {
    Comparable<? super E> key = (Comparable<? super E>)x;
    int half = size >>> 1; // loop while a non-leaf
    while (k < half) {
        int child = (k << 1) + 1; // assume left child is least
        Object c = queue[child];
        int right = child + 1;
        if (right < size &&
          //c和right是parent的两个子节点，找出小的那个成为新的c。
            ((Comparable<? super E>) c).compareTo((E) queue[right]) > 0)
            c = queue[child = right];
        if (key.compareTo((E) c) <= 0)
            break;
        //小的变成了新的父节点
        queue[k] = c;
        k = child;
    }
    queue[k] = key;
}

ArrayDeque<String> deque = new ArrayDeque<>();
deque.offer("aaa");
deque.offer("bbb");
deque.offer("ccc");
deque.offer("ddd");
//peek方法只获取不移除
System.err.println(deque.peekFirst());
System.err.println(deque.peekLast());

ArrayDeque<String> deque = new ArrayDeque<>();
deque.offerFirst("aaa");
deque.offerLast("bbb");
deque.offerFirst("ccc");
deque.offerLast("ddd");
String a;
while((a = deque.pollLast())!=null){
    System.err.print(a+"->");
}

//具体存放元素的数组，数组大小一定是2的幂次方
transient Object[] elements; // non-private to
//队列头索引
transient int head;
//队列尾索引
transient int tail;
//默认的最小初始化容量，即传入的容量小于8容量为8，而默认容量是16
private static final int MIN_INITIAL_CAPACITY = 8;

private static int calculateSize(int numElements) {
    int initialCapacity = MIN_INITIAL_CAPACITY;
    // Find the best power of two to hold elements.
    // Tests "<=" because arrays aren't kept full.
    if (numElements >= initialCapacity) {
        initialCapacity = numElements;
        initialCapacity |= (initialCapacity >>> 1);
        initialCapacity |= (initialCapacity >>> 2);
        initialCapacity |= (initialCapacity >>> 4);
        initialCapacity |= (initialCapacity >>> 8);
        initialCapacity |= (initialCapacity >>> 16);
        initialCapacity++;

        if (initialCapacity < 0) // Too many elements, must back off
            initialCapacity >>>= 1;// Good luck allocating 2 ^ 30 elements
    }
    return initialCapacity;
}

public void addFirst(E e) {
    if (e == null)
        throw new NullPointerException();
    elements[head = (head - 1) & (elements.length - 1)] = e;
    if (head == tail)
        doubleCapacity();
}

head = (head - 1) & (elements.length - 1)

head = head-1>=0?head-1:elements.length-1

public void addLast(E e) {
    if (e == null)
        throw new NullPointerException();
    elements[tail] = e;
    if ( (tail = (tail + 1) & (elements.length - 1)) == head)
        doubleCapacity();
}

(tail = (tail + 1) & (elements.length - 1))

package java.util;
public interface Set<E> extends Collection<E> {
    // Query Operations
    int size();
    boolean isEmpty();
    Object[] toArray();
    <T> T[] toArray(T[] a);
    // Modification Operations
    boolean add(E e);
    boolean remove(Object o);
    boolean containsAll(Collection<?> c);
    boolean addAll(Collection<? extends E> c);
    boolean retainAll(Collection<?> c);
    boolean removeAll(Collection<?> c);
    void clear();
    boolean equals(Object o);
    int hashCode();
  //此处和Collection接口由区别
   Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, Spliterator.DISTINCT);
    }
}

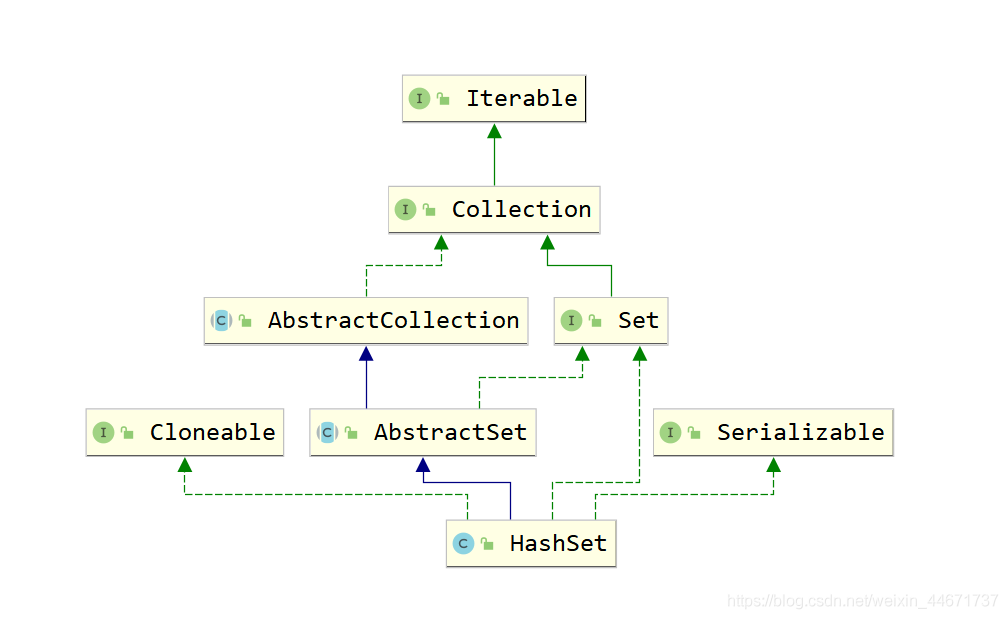

public class HashSet<E>
    extends AbstractSet<E>
    implements Set<E>, Cloneable, java.io.Serializable
{
    static final long serialVersionUID = -5024744406713321676L;
    private transient HashMap<E,Object> map;
    private static final Object PRESENT = new Object();
    public HashSet() {
        map = new HashMap<>();
    }
    public HashSet(Collection<? extends E> c) {
        map = new HashMap<>(Math.max((int) (c.size()/.75f) + 1, 16));
        addAll(c);
    }
    public HashSet(int initialCapacity, float loadFactor) {
        map = new HashMap<>(initialCapacity, loadFactor);
    }
    public HashSet(int initialCapacity) {
        map = new HashMap<>(initialCapacity);
    }
    HashSet(int initialCapacity, float loadFactor, boolean dummy) {
        map = new LinkedHashMap<>(initialCapacity, loadFactor);
    }
    public Iterator<E> iterator() {
        return map.keySet().iterator();
    }
    public int size() {
        return map.size();
    }
    public boolean isEmpty() {
        return map.isEmpty();
    }
    public boolean contains(Object o) {
        return map.containsKey(o);
    }
    public boolean add(E e) {
        return map.put(e, PRESENT)==null;
    }
    public boolean remove(Object o) {
        return map.remove(o)==PRESENT;
    }

    public void clear() {
        map.clear();
    }
}

package java.util;

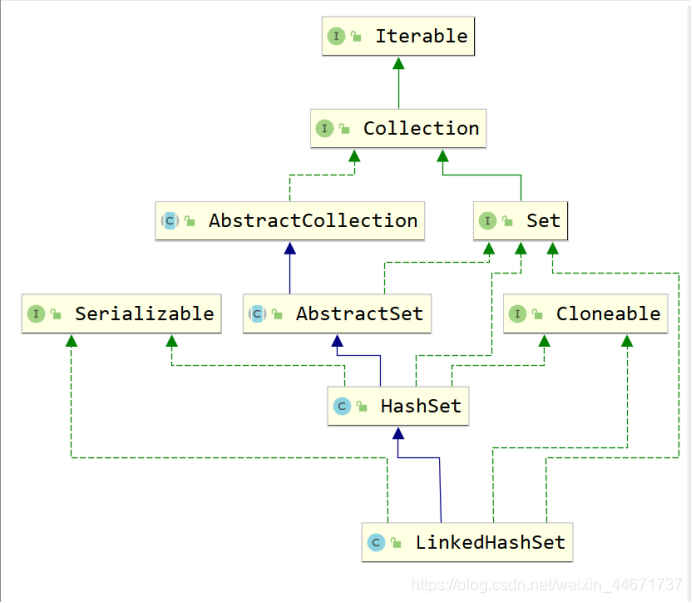

public class LinkedHashSet<E>
    extends HashSet<E>
    implements Set<E>, Cloneable, java.io.Serializable {

    private static final long serialVersionUID = -2851667679971038690L;

    public LinkedHashSet(int initialCapacity, float loadFactor) {
      //调用HashSet的构造方法
        super(initialCapacity, loadFactor, true);
    }
    public LinkedHashSet(int initialCapacity) {
        super(initialCapacity, .75f, true);
    }
    public LinkedHashSet() {
        super(16, .75f, true);
    }
    public LinkedHashSet(Collection<? extends E> c) {
        super(Math.max(2*c.size(), 11), .75f, true);
        addAll(c);
    }
    @Override
    public Spliterator<E> spliterator() {
        return Spliterators.spliterator(this, Spliterator.DISTINCT |
Spliterator.ORDERED);
    }
}

HashSet(int initialCapacity, float loadFactor, boolean dummy) {
    map = new LinkedHashMap<>(initialCapacity, loadFactor);
}

package java.util;

import java.util.function.BiConsumer;
import java.util.function.BiFunction;
import java.util.function.Function;
import java.io.Serializable;

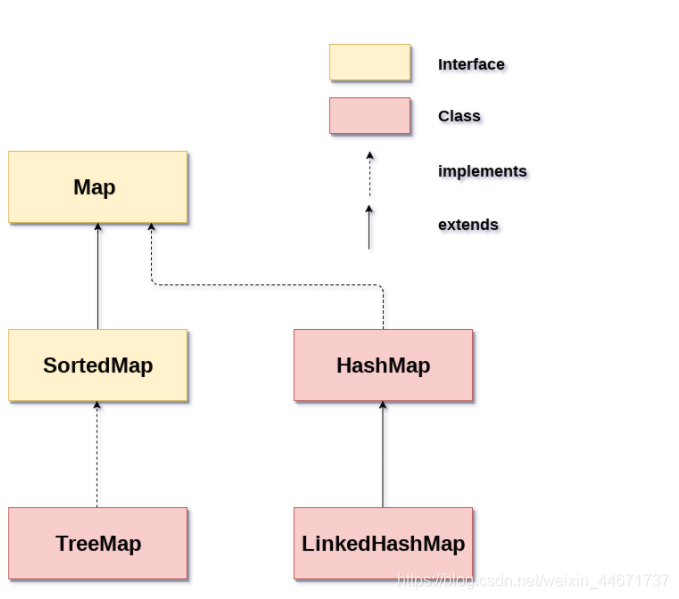

public interface Map<K,V> {
    // Query Operations
    int size();
    boolean isEmpty();
    boolean containsKey(Object key);
    boolean containsValue(Object value);
    V get(Object key);
    // Modification Operations
    V put(K key, V value);
    V remove(Object key);
    // Bulk Operations
    void putAll(Map<? extends K, ? extends V> m);
    void clear();
    Set<K> keySet();
    Collection<V> values();
    Set<Map.Entry<K, V>> entrySet();
    interface Entry<K,V> {
        K getKey();
        V getValue();
        V setValue(V value);
        boolean equals(Object o);
        int hashCode();
        public static <K extends Comparable<? super K>, V> Comparator<Map.Entry<K,V>> comparingByKey() {
            return (Comparator<Map.Entry<K, V>> & Serializable)
                (c1, c2) -> c1.getKey().compareTo(c2.getKey());
        }
        public static <K, V extends Comparable<? super V>> Comparator<Map.Entry<K,V>> comparingByValue() {
            return (Comparator<Map.Entry<K, V>> & Serializable)
                (c1, c2) -> c1.getValue().compareTo(c2.getValue());
        }
        public static <K, V> Comparator<Map.Entry<K, V>> comparingByKey(Comparator<? super K> cmp) {
            Objects.requireNonNull(cmp);
            return (Comparator<Map.Entry<K, V>> & Serializable)
                (c1, c2) -> cmp.compare(c1.getKey(), c2.getKey());
        }
        public static <K, V> Comparator<Map.Entry<K, V>> comparingByValue(Comparator<? super V> cmp) {
            Objects.requireNonNull(cmp);
            return (Comparator<Map.Entry<K, V>> & Serializable)
                (c1, c2) -> cmp.compare(c1.getValue(), c2.getValue());
        }
    }

    // Comparison and hashing
    boolean equals(Object o);
    int hashCode();
    default V getOrDefault(Object key, V defaultValue) {
        V v;
        return (((v = get(key)) != null) || containsKey(key))
            ? v
            : defaultValue;
    }
    default void forEach(BiConsumer<? super K, ? super V> action) {
        Objects.requireNonNull(action);
        for (Map.Entry<K, V> entry : entrySet()) {
            K k;
            V v;
            try {
                k = entry.getKey();
                v = entry.getValue();
            } catch(IllegalStateException ise) {
                // this usually means the entry is no longer in the map.
                throw new ConcurrentModificationException(ise);
            }
            action.accept(k, v);
        }
    }
    default void replaceAll(BiFunction<? super K, ? super V, ? extends V> function) {
        Objects.requireNonNull(function);
        for (Map.Entry<K, V> entry : entrySet()) {
            K k;
            V v;
            try {
                k = entry.getKey();
                v = entry.getValue();
            } catch(IllegalStateException ise) {
                // this usually means the entry is no longer in the map.
                throw new ConcurrentModificationException(ise);
            }

            // ise thrown from function is not a cme.
            v = function.apply(k, v);

            try {
                entry.setValue(v);
            } catch(IllegalStateException ise) {
                // this usually means the entry is no longer in the map.
                throw new ConcurrentModificationException(ise);
            }
        }
    }
    default V putIfAbsent(K key, V value) {
        V v = get(key);
        if (v == null) {
            v = put(key, value);
        }

        return v;
    }
    default boolean remove(Object key, Object value) {
        Object curValue = get(key);
        if (!Objects.equals(curValue, value) ||
            (curValue == null && !containsKey(key))) {
            return false;
        }
        remove(key);
        return true;
    }

    default boolean replace(K key, V oldValue, V newValue) {
        Object curValue = get(key);
        if (!Objects.equals(curValue, oldValue) ||
            (curValue == null && !containsKey(key))) {
            return false;
        }
        put(key, newValue);
        return true;
    }

    default V replace(K key, V value) {
        V curValue;
        if (((curValue = get(key)) != null) || containsKey(key)) {
            curValue = put(key, value);
        }
        return curValue;
    }
    default V computeIfAbsent(K key,
            Function<? super K, ? extends V> mappingFunction) {
        Objects.requireNonNull(mappingFunction);
        V v;
        if ((v = get(key)) == null) {
            V newValue;
            if ((newValue = mappingFunction.apply(key)) != null) {
                put(key, newValue);
                return newValue;
            }
        }

        return v;
    }

    default V computeIfPresent(K key,
            BiFunction<? super K, ? super V, ? extends V> remappingFunction) {
        Objects.requireNonNull(remappingFunction);
        V oldValue;
        if ((oldValue = get(key)) != null) {
            V newValue = remappingFunction.apply(key, oldValue);
            if (newValue != null) {
                put(key, newValue);
                return newValue;
            } else {
                remove(key);
                return null;
            }
        } else {
            return null;
        }
    }


    default V compute(K key,
            BiFunction<? super K, ? super V, ? extends V> remappingFunction) {
        Objects.requireNonNull(remappingFunction);
        V oldValue = get(key);

        V newValue = remappingFunction.apply(key, oldValue);
        if (newValue == null) {
            // delete mapping
            if (oldValue != null || containsKey(key)) {
                // something to remove
                remove(key);
                return null;
            } else {
                // nothing to do. Leave things as they were.
                return null;
            }
        } else {
            // add or replace old mapping
            put(key, newValue);
            return newValue;
        }
    }
    default V merge(K key, V value,
            BiFunction<? super V, ? super V, ? extends V> remappingFunction) {
        Objects.requireNonNull(remappingFunction);
        Objects.requireNonNull(value);
        V oldValue = get(key);
        V newValue = (oldValue == null) ? value :
                   remappingFunction.apply(oldValue, value);
        if(newValue == null) {
            remove(key);
        } else {
            put(key, newValue);
        }
        return newValue;
    }
}

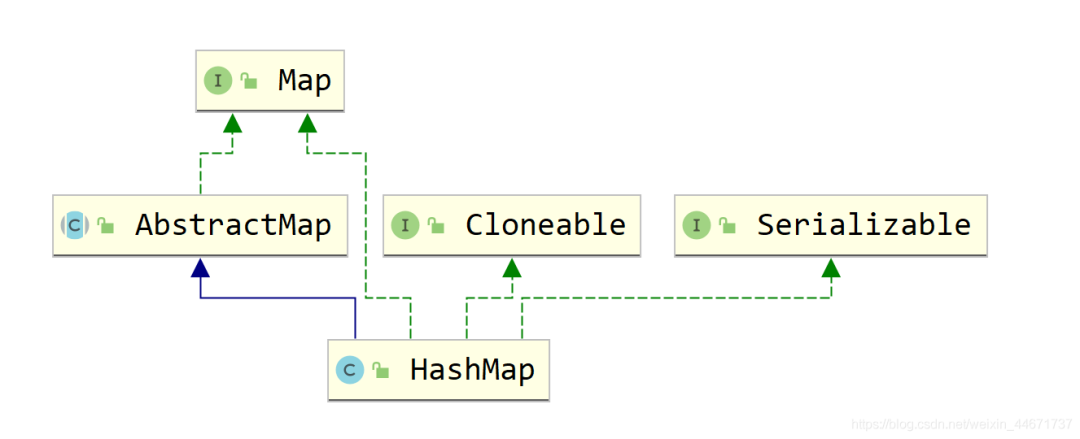

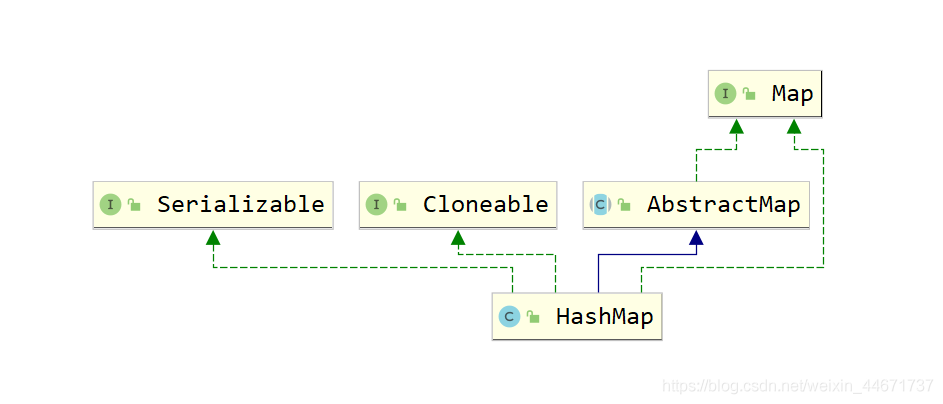

transient Node<K,V>[] table;

//是hashMap的最小容量16，容量就是数组的大小也就是变量，transient Node<K,V>[] table。
    static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; // aka 16
    //最大数量，该数组最大值为2^31一次方。
    static final int MAXIMUM_CAPACITY = 1 << 30;
    //默认的加载因子，如果构造的时候不传则为0.75
    static final float DEFAULT_LOAD_FACTOR = 0.75f;
    //一个位置里存放的节点转化成树的阈值，也就是8，比如数组里有一个node，这个
      // node链表的长度达到该值才会转化为红黑树。
    static final int TREEIFY_THRESHOLD = 8;
    //当一个反树化的阈值，当这个node长度减少到该值就会从树转化成链表
    static final int UNTREEIFY_THRESHOLD = 6;
    //满足节点变成树的另一个条件，就是存放node的数组长度要达到64
    static final int MIN_TREEIFY_CAPACITY = 64;
    //具体存放数据的数组
    transient Node<K,V>[] table;
    //entrySet，一个存放k-v缓冲区
    transient Set<Map.Entry<K,V>> entrySet;
    //size是指hashMap中存放了多少个键值对
    transient int size;
    //对map的修改次数
    transient int modCount;
    //加载因子
    final float loadFactor;

//只有容量，initialCapacity
public HashMap(int initialCapacity) {
    this(initialCapacity, DEFAULT_LOAD_FACTOR);
}
public HashMap() {
    this.loadFactor = DEFAULT_LOAD_FACTOR; // all other fields defaulted
}
public HashMap(Map<? extends K, ? extends V> m) {
    this.loadFactor = DEFAULT_LOAD_FACTOR;
    putMapEntries(m, false);
}
final void putMapEntries(Map<? extends K, ? extends V> m, boolean evict) {
    int s = m.size();
    if (s > 0) {
        if (table == null) { // pre-size
            float ft = ((float)s / loadFactor) + 1.0F;
            int t = ((ft < (float)MAXIMUM_CAPACITY) ?
                     (int)ft : MAXIMUM_CAPACITY);
            if (t > threshold)
                threshold = tableSizeFor(t);
        }
        else if (s > threshold)
            resize();
        for (Map.Entry<? extends K, ? extends V> e : m.entrySet()) {
            K key = e.getKey();
            V value = e.getValue();
            putVal(hash(key), key, value, false, evict);
        }
    }
}

public HashMap(int initialCapacity, float loadFactor) {
    if (initialCapacity < 0) // 容量不能为负数
        throw new IllegalArgumentException("Illegal initial capacity: " +
                                           initialCapacity);
    //当容量大于2^31就取最大值1<<31;
    if (initialCapacity > MAXIMUM_CAPACITY)
        initialCapacity = MAXIMUM_CAPACITY;
    if (loadFactor <= 0 || Float.isNaN(loadFactor))
        throw new IllegalArgumentException("Illegal load factor: " +
                                           loadFactor);
    this.loadFactor = loadFactor;
    //当前数组table的大小，一定是是2的幂次方
    // tableSizeFor保证了数组一定是是2的幂次方，是大于initialCapacity最结进的值。
    this.threshold = tableSizeFor(initialCapacity);
}

static final int tableSizeFor(int cap) {
    int n = cap - 1;
    n |= n >>> 1;
    n |= n >>> 2;
    n |= n >>> 4;
    n |= n >>> 8;
    n |= n >>> 16;
    return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
}

public V put(K key, V value) {
    return putVal(hash(key), key, value, false, true);
}

final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
               boolean evict) {
    Node<K,V>[] tab; Node<K,V> p; int n, i;
    if ((tab = table) == null || (n = tab.length) == 0)
        n = (tab = resize()).length;
    //当hash到的位置，该位置为null的时候，存放一个新node放入
    // 这儿p赋值成了table该位置的node值
    if ((p = tab[i = (n - 1) & hash]) == null)
        tab[i] = newNode(hash, key, value, null);
    else {
        Node<K,V> e; K k;
        //该位置第一个就是查找到的值，将p赋给e
        if (p.hash == hash &&
            ((k = p.key) == key || (key != null && key.equals(k))))
            e = p;
        //如果是红黑树，调用红黑树的putTreeVal方法
        else if (p instanceof TreeNode)
            e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
        else {
          //是链表，遍历，注意e = p.next这个一直将下一节点赋值给e，直到尾部，注意开头是++binCount
            for (int binCount = 0; ; ++binCount) {
                if ((e = p.next) == null) {
                    p.next = newNode(hash, key, value, null);
                    //当链表长度大于等于7，插入第8位，树化
                    if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
                        treeifyBin(tab, hash);
                    break;
                }
                if (e.hash == hash &&
                    ((k = e.key) == key || (key != null && key.equals(k))))
                    break;
                p = e;
            }
        }
        if (e != null) { // existing mapping for key
            V oldValue = e.value;
            if (!onlyIfAbsent || oldValue == null)
                e.value = value;
            afterNodeAccess(e);
            return oldValue;
        }
    }
    ++modCount;
    if (++size > threshold)
        resize();
    afterNodeInsertion(evict);
    return null;
}

final Node<K,V> getNode(int hash, Object key) {
    Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
    //先判断表不为空
    if ((tab = table) != null && (n = tab.length) > 0 &&
        //这一行是找到要查询的Key在table中的位置，table是存放HashMap中每一个Node的数组。
        (first = tab[(n - 1) & hash]) != null) {
        //Node可能是一个链表或者树，先判断根节点是否是要查询的key,就是根节点，方便后续遍历Node写法并且
        //对于只有根节点的Node直接判断
        if (first.hash == hash && // always check first node
            ((k = first.key) == key || (key != null && key.equals(k))))
            return first;
        //有子节点
        if ((e = first.next) != null) {
            //红黑树查找
            if (first instanceof TreeNode)
                return ((TreeNode<K,V>)first).getTreeNode(hash, key);
            do {
                //链表查找
                if (e.hash == hash &&
                    ((k = e.key) == key || (key != null && key.equals(k))))
                    return e;
            }
            //遍历链表，当链表后续为null则推出循环
            while ((e = e.next) != null);
        }
    }
    return null;
}

public abstract
class Dictionary<K,V> {
    public Dictionary() {
    }
    public abstract int size();
    public abstract boolean isEmpty();
    public abstract Enumeration<K> keys();
    public abstract Enumeration<V> elements();
    public abstract V get(Object key);
    public abstract V put(K key, V value);

    public abstract V remove(Object key);
}

//throws NullPointerException if the {@code key} is {@code null}.

/**
 * The hash table data.
 * 真正存放数据的数组
 */
private transient Entry<?,?>[] table;

/**
 * The total number of entries in the hash table.
 */
private transient int count;

/**
 * The table is rehashed when its size exceeds this threshold. (The
 * value of this field is (int)(capacity * loadFactor).)
 * 重新hash的阈值
 * @serial
 */
private int threshold;

/**
 * The load factor for the hashtable.
 * @serial
 */
private float loadFactor;

final int hash;
final K key;
V value;
Entry<K,V> next;

public synchronized V put(K key, V value) {
    // Make sure the value is not null
    if (value == null) {
        throw new NullPointerException();
    }

    // Makes sure the key is not already in the hashtable.
    Entry<?,?> tab[] = table;
    int hash = key.hashCode();
    //在数组中的位置 0x7fffffff 是31位二进制1
    int index = (hash & 0x7FFFFFFF) % tab.length;
    @SuppressWarnings("unchecked")
    Entry<K,V> entry = (Entry<K,V>)tab[index];
    for(; entry != null ; entry = entry.next) {
      //如果遍历链表找到了则替换旧值并返回
        if ((entry.hash == hash) && entry.key.equals(key)) {
            V old = entry.value;
            entry.value = value;
            return old;
        }
    }

    addEntry(hash, key, value, index);
    return null;
}

private void addEntry(int hash, K key, V value, int index) {
    Entry<?,?> tab[] = table;
    //如果扩容需要重新计算hash，所以index和table都会被修改
    if (count >= threshold) {
        // Rehash the table if the threshold is exceeded
        rehash();

        tab = table;
        hash = key.hashCode();
        index = (hash & 0x7FFFFFFF) % tab.length;
    }
    // Creates the new entry.
    @SuppressWarnings("unchecked")
    Entry<K,V> e = (Entry<K,V>) tab[index];
    //插入新元素
    tab[index] = new Entry<>(hash, key, value, e);
    count++;
    modCount++;
}

tab[index] = new Entry<>(hash, key, value, e);

@SuppressWarnings("unchecked")
public synchronized V get(Object key) {
    Entry<?,?> tab[] = table;
    int hash = key.hashCode();
    int index = (hash & 0x7FFFFFFF) % tab.length;
    for (Entry<?,?> e = tab[index] ; e != null ; e = e.next) {
        if ((e.hash == hash) && e.key.equals(key)) {
            return (V)e.value;
        }
    }
    return null;
}
