代达罗斯之殇-大数据领域小文件问题解决攻略

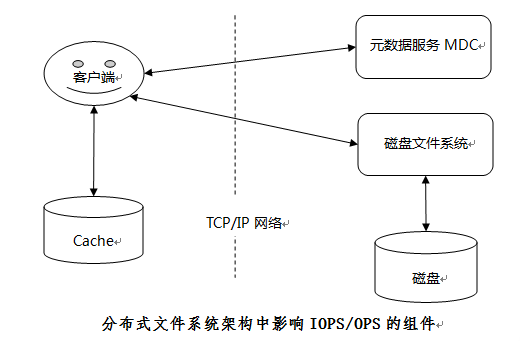

小文件问题概述

小文件合并

Hadoop小文件合并策略和方式

Hadoop 小文件是怎么来的

1. 现在我们越来越多的将Hadoop用于（准）实时计算，在做数据抽取时处理的频率可能是每小时，每天，每周等，每次可能就只生成一个不到10MB的文件。

2. 数据源有大量小文件，未做处理直接拷贝到Hadoop集群。

3. MapReduce作业的配置未设置合理的reducer或者未做限制，每个reduce都会生成一个独立的文件。另外如果数据倾斜，导致大量的数据都shuffle到一个reduce，然后其他的reduce都会处理较小的数据量并输出小文件。

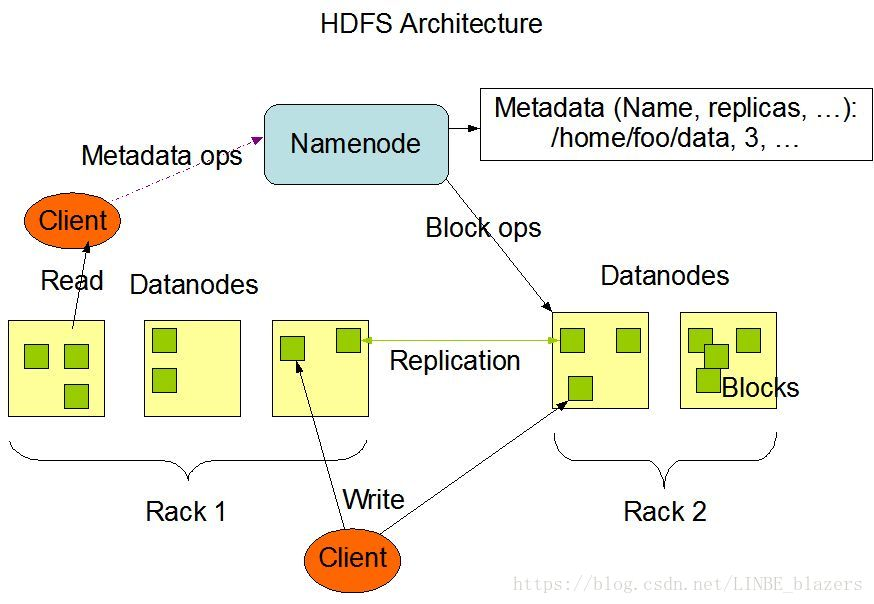

解决NameNode的内存问题

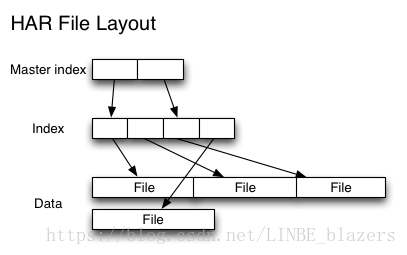

Hadoop Archive Files

NameNode联邦

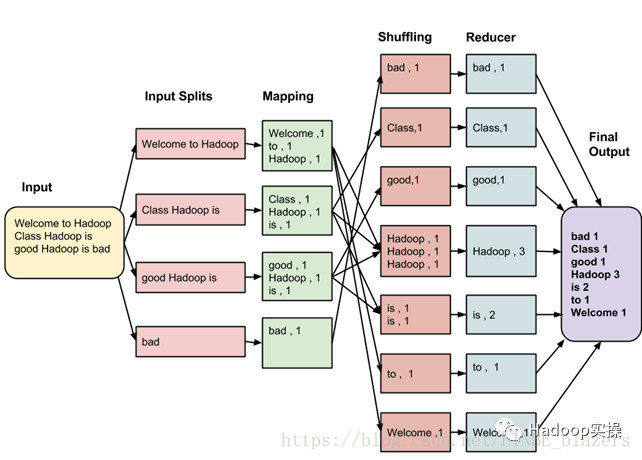

解决MapReduce性能问题

1.修改数据抽取方法/间隔
2.批量文件合并
3.Sequence文件
4.HBase
5.S3DistCp (如果使用Amazon EMR)
6.使用CombineFileInputFormat
7.通过Hive合并小文件
8.使用Hadoop的追加特性

修改数据抽取方法/间隔

批量文件合并

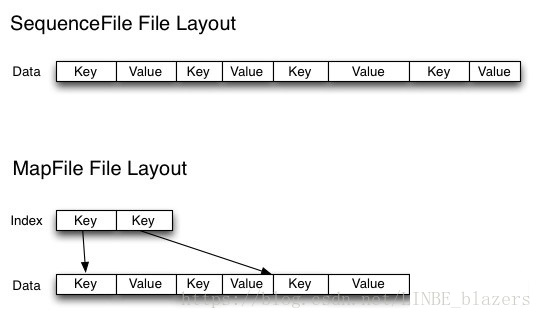

Sequence文件

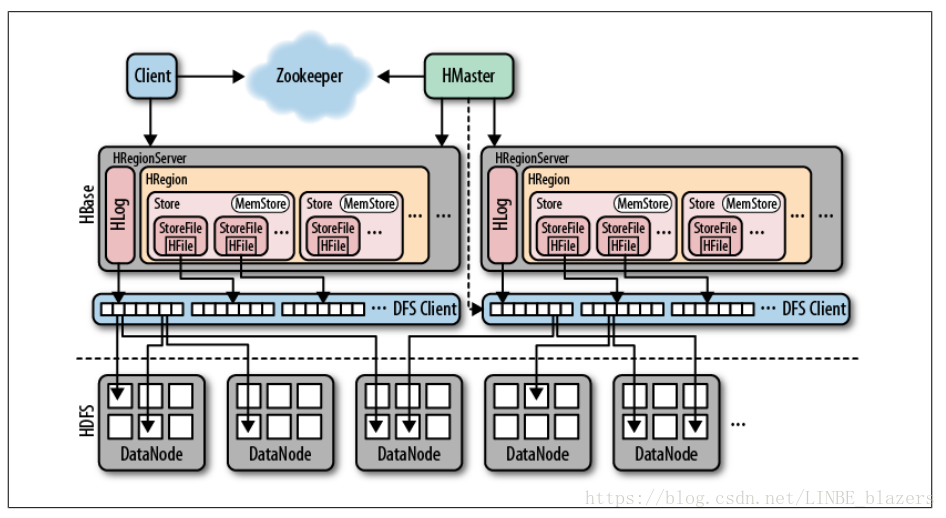

HBase

S3DistCp (如果使用Amazon EMR)

使用CombineFileInputFormat

hive.input.format=org.apache.hadoop.hive.ql.io.CombineHiveInputFormat
set mapreduce.input.fileinputformat.split.maxsize=1073741824
set mapreduce.input.fileinputformat.split.minsize=1073741824

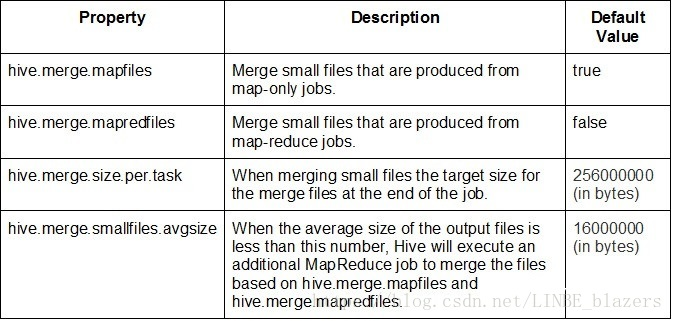

通过Hive合并小文件

使用Hadoop的追加特性

Hive优化之小文件问题及其解决方案

增加batch大小

Coalesce和repartition

rdd.coalesce(1, true)
rdd.repartition(1)

def coalesce(numPartitions: Int, shuffle: Boolean = false,
               partitionCoalescer: Option[PartitionCoalescer] = Option.empty)
              (implicit ord: Ordering[T] = null)
      : RDD[T] = withScope {
    require(numPartitions > 0, s"Number of partitions ($numPartitions) must be positive.")
    if (shuffle) {
      /** Distributes elements evenly across output partitions, starting from a random partition. */
      val distributePartition = (index: Int, items: Iterator[T]) => {
        var position = new Random(hashing.byteswap32(index)).nextInt(numPartitions)
        items.map { t =>
          // Note that the hash code of the key will just be the key itself. The HashPartitioner
          // will mod it with the number of total partitions.
          position = position + 1
          (position, t)
        }
      } : Iterator[(Int, T)]

      // include a shuffle step so that our upstream tasks are still distributed
      new CoalescedRDD(
        new ShuffledRDD[Int, T, T](
          mapPartitionsWithIndexInternal(distributePartition, isOrderSensitive = true),
          new HashPartitioner(numPartitions)),
        numPartitions,
        partitionCoalescer).values
    } else {
      new CoalescedRDD(this, numPartitions, partitionCoalescer)
    }
  }

分区数之间的比例不太悬殊。比如原有1000个分区，减少到200个分区，这时可以将shuffle设为false，因为子RDD中的一个分区只对应父RDD的5个分区，压力不大。分区数之间的比例悬殊。比如原有500个分区，减少到1个分区，就要将shuffle设为true，保证生成CoalescedRDD之前的操作有足够的并行度，防止Executor出现单点问题。这也就是本节开头的做法了。

  def repartition(numPartitions: Int)(implicit ord: Ordering[T] = null): RDD[T] = withScope {
    coalesce(numPartitions, shuffle = true)
  }

SparkStreaming外部来处理

自己调用foreach去append

Spark SQL 小文件问题产生原因分析以及处理方案

Caused by: org.apache.spark.SparkException: Job aborted due to stage failure: Total size of serialized results of 478 tasks (2026.0 MB) is bigger than spark.driver.maxResultSize (1024.0 MB)

现象

1) 对表test_tab进行写入操作
2) t1的分区数是100，t2的分区数是200，union all后生成的tmp分区数是300
3) test_tab产生的小文件数基本也在300左右
select * from t1 union all select * from t2 as tmp;
insert overwrite table test_tab select * from tmp;

分析

通过分析源码，RDD在调用union算子时，最终生成的RDD分区数分两种情况：
1）union的RDD分区器已定义并且它们的分区器相同
多个父RDD具有相同的分区器，union后产生的RDD的分区器与父RDD相同且分区数也相同。比如，n个RDD的分区器相同且是defined，分区数是m个。那么这n个RDD最终union生成的一个RDD的分区数仍是m，分区器也是相同的
2）不满足第一种情况，则通过union生成的RDD的分区数为父RDD的分区数之和

1. 通过repartition或coalesce算子控制最后的DataSet的分区数

2. 将Hive风格的Coalesce and Repartition Hint 应用到Spark SQL需要注意这种方式对Spark的版本有要求，建议在Spark2.4.X及以上版本使用，示例：

   INSERT ... SELECT /*+ COALESCE(numPartitions) */ ...
   INSERT ... SELECT /*+ REPARTITION(numPartitions) */ ...

3. 小文件定期合并 可以定时通过异步的方式针对Hive分区表的每一个分区中的小文件进行合并操作。

Flink小文件合并

自定义 PartitionCommitPolicy

package me.lmagics.flinkexp.hiveintegration.util;

import org.apache.flink.hive.shaded.parquet.example.data.Group;
import org.apache.flink.hive.shaded.parquet.hadoop.ParquetFileReader;
import org.apache.flink.hive.shaded.parquet.hadoop.ParquetFileWriter.Mode;
import org.apache.flink.hive.shaded.parquet.hadoop.ParquetReader;
import org.apache.flink.hive.shaded.parquet.hadoop.ParquetWriter;
import org.apache.flink.hive.shaded.parquet.hadoop.example.ExampleParquetWriter;
import org.apache.flink.hive.shaded.parquet.hadoop.example.GroupReadSupport;
import org.apache.flink.hive.shaded.parquet.hadoop.metadata.CompressionCodecName;
import org.apache.flink.hive.shaded.parquet.hadoop.metadata.ParquetMetadata;
import org.apache.flink.hive.shaded.parquet.hadoop.util.HadoopInputFile;
import org.apache.flink.hive.shaded.parquet.schema.MessageType;
import org.apache.flink.table.filesystem.PartitionCommitPolicy;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.LocatedFileStatus;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.fs.RemoteIterator;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class ParquetFileMergingCommitPolicy implements PartitionCommitPolicy {
  private static final Logger LOGGER = LoggerFactory.getLogger(ParquetFileMergingCommitPolicy.class);

  @Override
  public void commit(Context context) throws Exception {
    Configuration conf = new Configuration();
    FileSystem fs = FileSystem.get(conf);
    String partitionPath = context.partitionPath().getPath();

    List<Path> files = listAllFiles(fs, new Path(partitionPath), "part-");
    LOGGER.info("{} files in path {}", files.size(), partitionPath);

    MessageType schema = getParquetSchema(files, conf);
    if (schema == null) {
      return;
    }
    LOGGER.info("Fetched parquet schema: {}", schema.toString());

    Path result = merge(partitionPath, schema, files, fs);
    LOGGER.info("Files merged into {}", result.toString());
  }

  private List<Path> listAllFiles(FileSystem fs, Path dir, String prefix) throws IOException {
    List<Path> result = new ArrayList<>();

    RemoteIterator<LocatedFileStatus> dirIterator = fs.listFiles(dir, false);
    while (dirIterator.hasNext()) {
      LocatedFileStatus fileStatus = dirIterator.next();
      Path filePath = fileStatus.getPath();
      if (fileStatus.isFile() && filePath.getName().startsWith(prefix)) {
        result.add(filePath);
      }
    }

    return result;
  }

  private MessageType getParquetSchema(List<Path> files, Configuration conf) throws IOException {
    if (files.size() == 0) {
      return null;
    }

    HadoopInputFile inputFile = HadoopInputFile.fromPath(files.get(0), conf);
    ParquetFileReader reader = ParquetFileReader.open(inputFile);
    ParquetMetadata metadata = reader.getFooter();
    MessageType schema = metadata.getFileMetaData().getSchema();

    reader.close();
    return schema;
  }

  private Path merge(String partitionPath, MessageType schema, List<Path> files, FileSystem fs) throws IOException {
    Path mergeDest = new Path(partitionPath + "/result-" + System.currentTimeMillis() + ".parquet");
    ParquetWriter<Group> writer = ExampleParquetWriter.builder(mergeDest)
      .withType(schema)
      .withConf(fs.getConf())
      .withWriteMode(Mode.CREATE)
      .withCompressionCodec(CompressionCodecName.SNAPPY)
      .build();

    for (Path file : files) {
      ParquetReader<Group> reader = ParquetReader.builder(new GroupReadSupport(), file)
        .withConf(fs.getConf())
        .build();
      Group data;
      while((data = reader.read()) != null) {
        writer.write(data);
      }
      reader.close();
    }
    writer.close();

    for (Path file : files) {
      fs.delete(file, false);
    }

    return mergeDest;
  }
}

• auto-compaction 是否自动合并

• compaction.file-size: compact target file size, default is rolling-file-size 合并后文件大小

public void notifyCheckpointComplete(long checkpointId) throws Exception {
        super.notifyCheckpointComplete(checkpointId);
        output.collect(new StreamRecord<>(new EndCheckpoint(
                checkpointId,
                getRuntimeContext().getIndexOfThisSubtask(),
                getRuntimeContext().getNumberOfParallelSubtasks())));
    }

• 在 FileSystem/Hive connector 的流式写入中支持小文件合并 (FLINK-19345)
