开发者实战 | OpenVINO™ C# API部署YOLOv9目标检测和实例分割模型

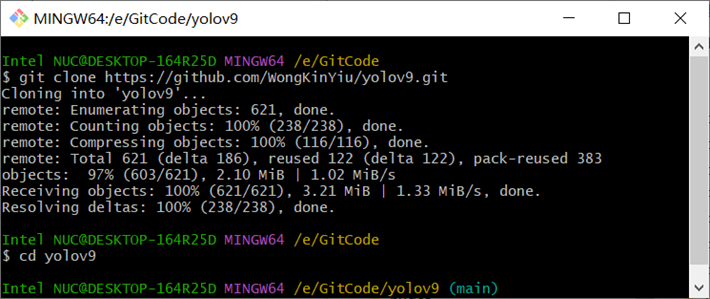

git clone https://github.com/WongKinYiu/yolov9.gitcd yolov9

conda create -n yolov9 python=3.10conda activate yolov9

pip install -r requirements.txtpip install openvino==2024.0.0

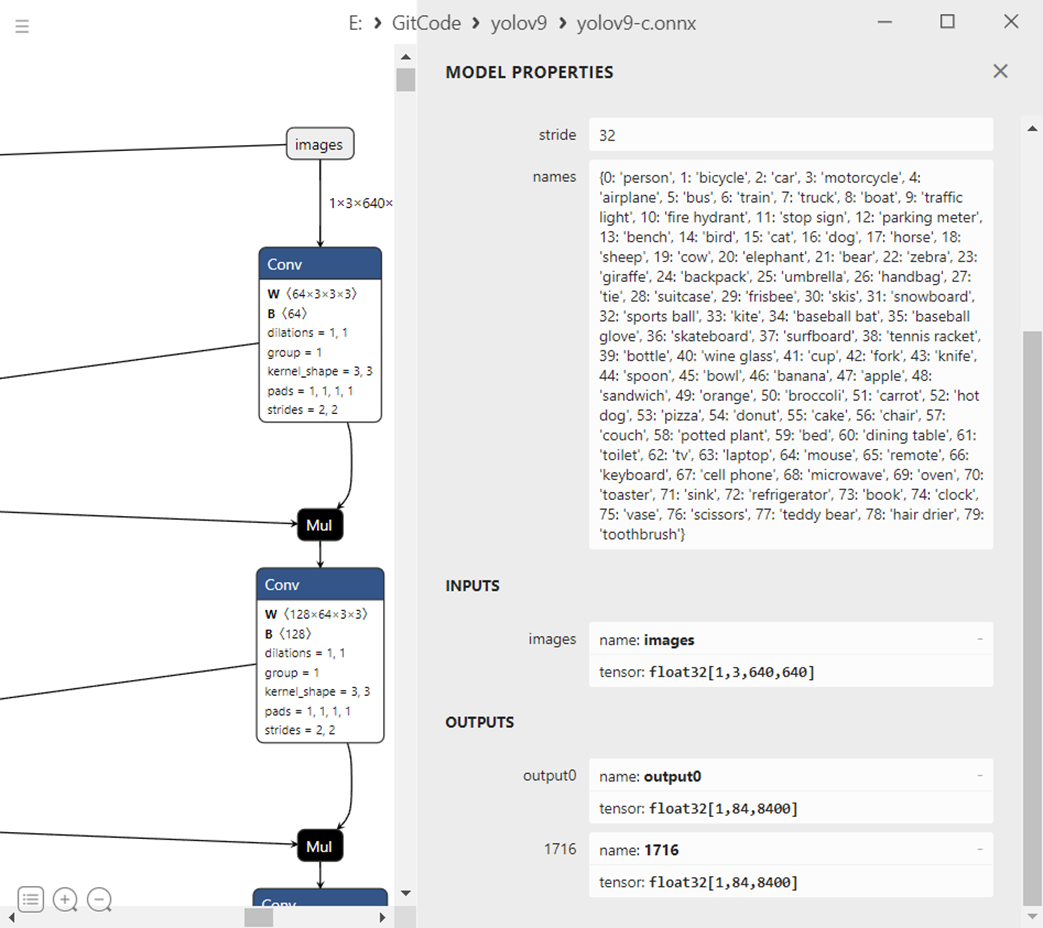

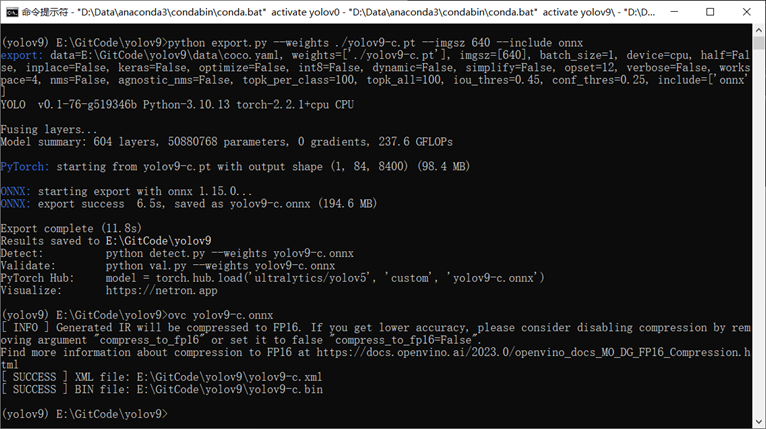

wget https://github.com/WongKinYiu/yolov9/releases/download/v0.1/yolov9-c.ppython export.py --weights ./yolov9-c.pt --imgsz 640 --include onnxovc yolov9-c.onnx

dotnet new console --framework net6.0 --use-program-main -o yolov9

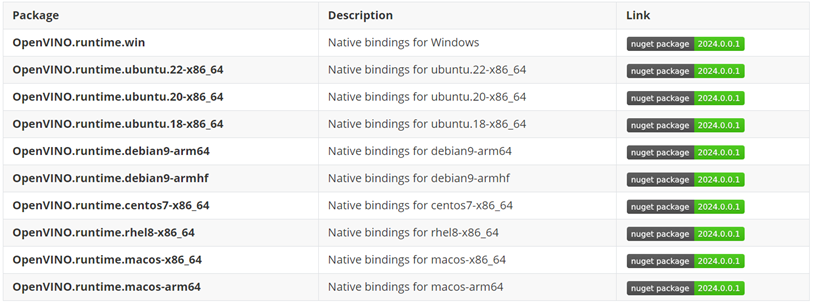

dotnet add package OpenVINO.CSharp.APIdotnet add package OpenVINO.runtime.windotnet add package OpenVINO.CSharp.API.Extensionsdotnet add package OpenVINO.CSharp.API.Extensions.OpenCvSharp

dotnet add package OpenCvSharp4dotnet add package OpenCvSharp4.Extensionsdotnet add package OpenCvSharp4.runtime.win

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>    <OutputType>Exe</OutputType>    <TargetFramework>net6.0</TargetFramework>    <ImplicitUsings>enable</ImplicitUsings>    <Nullable>enable</Nullable>  </PropertyGroup>    <ItemGroup>    <PackageReference Include="OpenCvSharp4" Version="4.9.0.20240103" />    <PackageReference Include="OpenCvSharp4.Extensions" Version="4.9.0.20240103" />    <PackageReference Include="OpenCvSharp4.runtime.win" Version="4.9.0.20240103" />    <PackageReference Include="OpenVINO.CSharp.API" Version="2024.0.0.1" />    <PackageReference Include="OpenVINO.CSharp.API.Extensions.OpenCvSharp" Version="1.0.4" />    <PackageReference Include="OpenVINO.runtime.win" Version="2024.0.0.1" />  </ItemGroup>  </Project>

static void yolov9_det(string model_path, string image_path, string device){    // -------- Step 1. Initialize OpenVINO Runtime Core --------    Core core = new Core();    // -------- Step 2. Read inference model --------    Model model = core.read_model(model_path);    // -------- Step 3. Loading a model to the device --------    CompiledModel compiled_model = core.compile_model(model, device);    // -------- Step 4. Create an infer request --------    InferRequest infer_request = compiled_model.create_infer_request();    // -------- Step 5. Process input images --------    Mat image = new Mat(image_path); // Read image by opencvsharp    int max_image_length = image.Cols > image.Rows ? image.Cols : image.Rows;    Mat max_image = Mat.Zeros(new OpenCvSharp.Size(max_image_length, max_image_length), MatType.CV_8UC3);    Rect roi = new Rect(0, 0, image.Cols, image.Rows);    image.CopyTo(new Mat(max_image, roi));    float factor = (float)(max_image_length / 640.0);    // -------- Step 6. Set up input data --------    Tensor input_tensor = infer_request.get_input_tensor();    Shape input_shape = input_tensor.get_shape();    Mat input_mat = CvDnn.BlobFromImage(max_image, 1.0 / 255.0, new OpenCvSharp.Size(input_shape[2], input_shape[3]), 0, true, false);    float[] input_data = new float[input_shape[1] * input_shape[2] * input_shape[3]];    Marshal.Copy(input_mat.Ptr(0), input_data, 0, input_data.Length);    input_tensor.set_data<float>(input_data);    // -------- Step 7. Do inference synchronously --------    infer_request.infer();    // -------- Step 8. Get infer result data --------    start = DateTime.Now;    Tensor output_tensor = new Tensor();    if (model.get_outputs_size() > 1)    {        output_tensor = infer_request.get_output_tensor(1);    }    else    {        output_tensor = infer_request.get_output_tensor();    }    int output_length = (int)output_tensor.get_size();    float[] output_data = output_tensor.get_data<float>(output_length);    // -------- Step 9. Process reault  --------    Mat result_data = new Mat(84, 8400, MatType.CV_32F, output_data);    result_data = result_data.T();    // Storage results list    List<Rect> position_boxes = new List<Rect>();    List<int> class_ids = new List<int>();    List<float> confidences = new List<float>();    // Preprocessing output results    for (int i = 0; i < result_data.Rows; i++)    {        Mat classes_scores = new Mat(result_data, new Rect(4, i, 80, 1));        OpenCvSharp.Point max_classId_point, min_classId_point;        double max_score, min_score;        // Obtain the maximum value and its position in a set of data        Cv2.MinMaxLoc(classes_scores, out min_score, out max_score,            out min_classId_point, out max_classId_point);        // Confidence level between 0 ~ 1        // Obtain identification box information        if (max_score > 0.25)        {            float cx = result_data.At<float>(i, 0);            float cy = result_data.At<float>(i, 1);            float ow = result_data.At<float>(i, 2);            float oh = result_data.At<float>(i, 3);            int x = (int)((cx - 0.5 * ow) * factor);            int y = (int)((cy - 0.5 * oh) * factor);            int width = (int)(ow * factor);            int height = (int)(oh * factor);            Rect box = new Rect();            box.X = x;            box.Y = y;            box.Width = width;            box.Height = height;

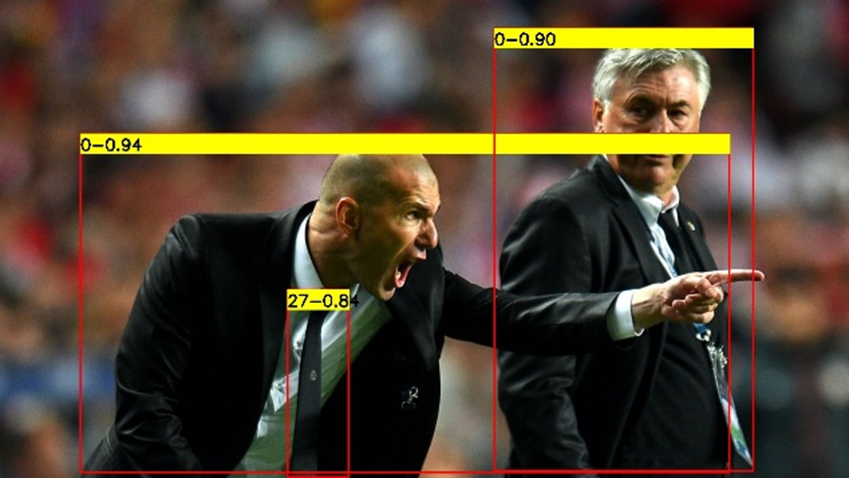

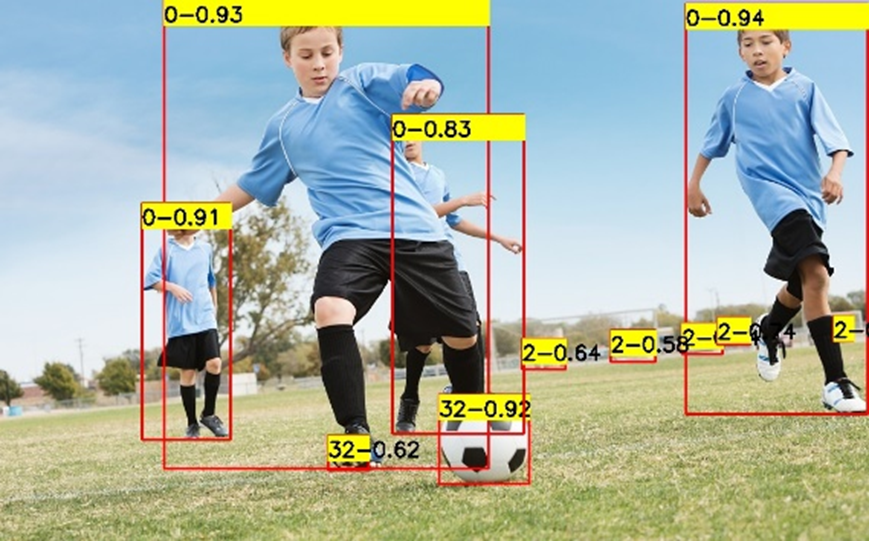

            position_boxes.Add(box);            class_ids.Add(max_classId_point.X);            confidences.Add((float)max_score);        }    }    // NMS non maximum suppression    int[] indexes = new int[position_boxes.Count];    CvDnn.NMSBoxes(position_boxes, confidences, 0.5f, 0.5f, out indexes);    for (int i = 0; i < indexes.Length; i++)    {        int index = indexes[i];        Cv2.Rectangle(image, position_boxes[index], new Scalar(0, 0, 255), 2, LineTypes.Link8);        Cv2.Rectangle(image, new OpenCvSharp.Point(position_boxes[index].TopLeft.X, position_boxes[index].TopLeft.Y + 30),            new OpenCvSharp.Point(position_boxes[index].BottomRight.X, position_boxes[index].TopLeft.Y), new Scalar(0, 255, 255), -1);        Cv2.PutText(image, class_ids[index] + "-" + confidences[index].ToString("0.00"),            new OpenCvSharp.Point(position_boxes[index].X, position_boxes[index].Y + 25),            HersheyFonts.HersheySimplex, 0.8, new Scalar(0, 0, 0), 2);    }    string output_path = Path.Combine(Path.GetDirectoryName(Path.GetFullPath(image_path)),        Path.GetFileNameWithoutExtension(image_path) + "_result.jpg");    Cv2.ImWrite(output_path, image);    Slog.INFO("The result save to " + output_path);    Cv2.ImShow("Result", image);    Cv2.WaitKey(0);}

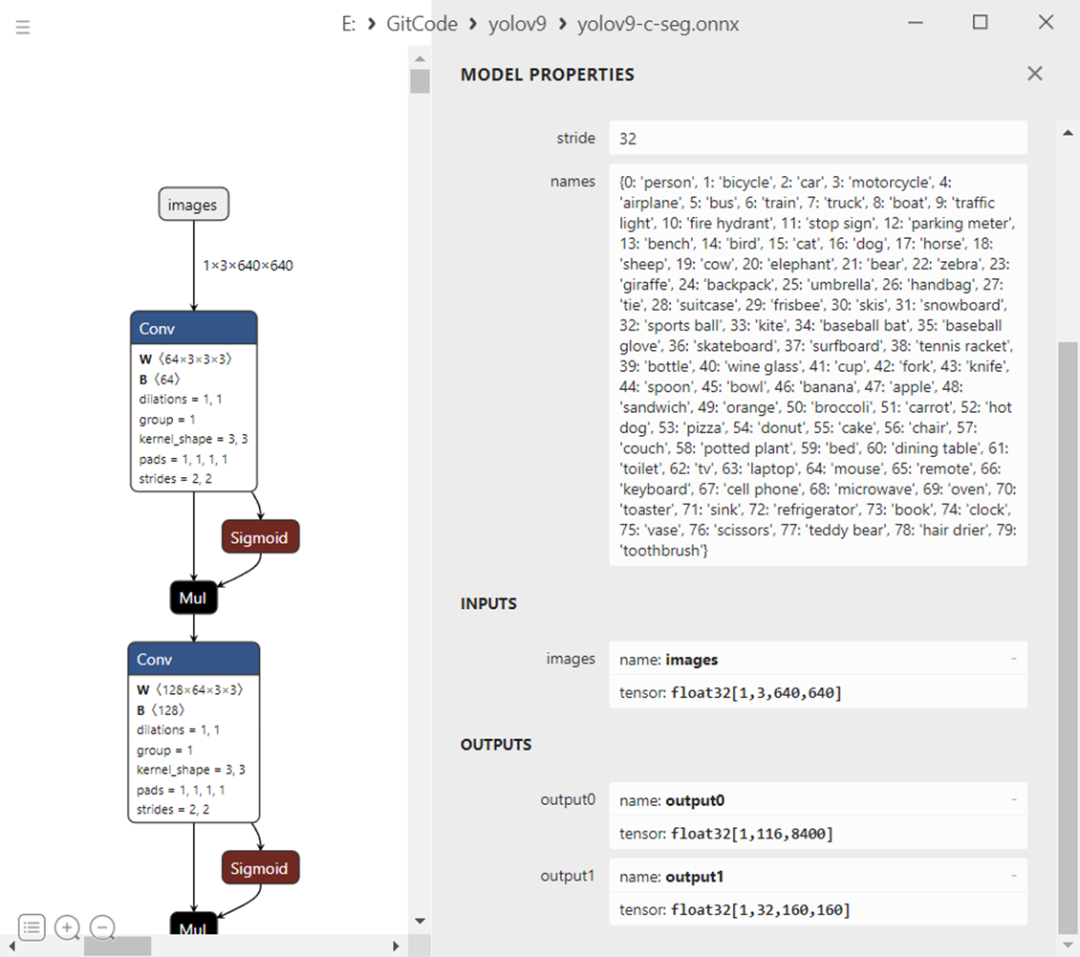

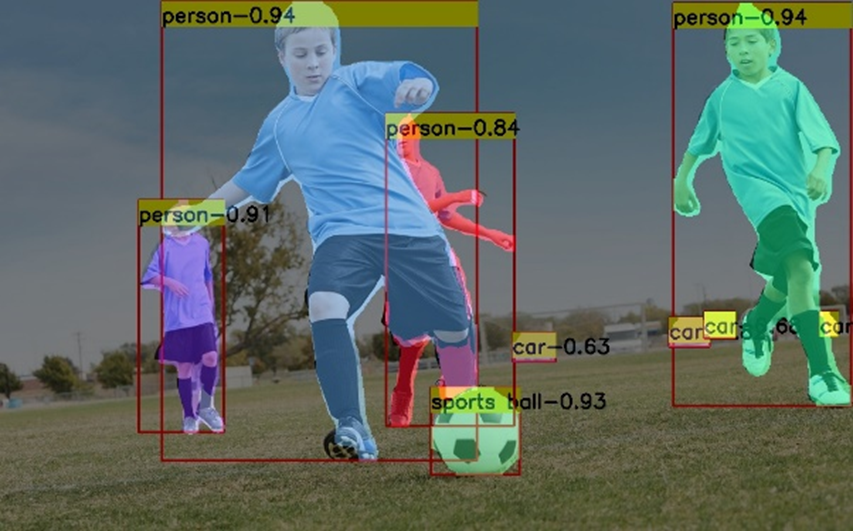

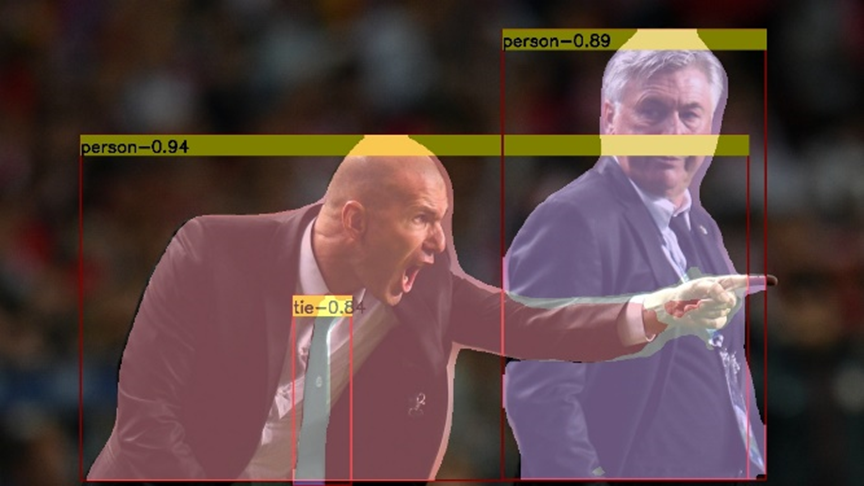

static void yolov9_seg(string model_path, string image_path, string device){    ... ...(代码与上文一致)    // -------- Step 8. Get infer result data --------    Tensor output_tensor_0 = infer_request.get_output_tensor(0);    float[] result_detect = output_tensor_0.get_data<float>((int)output_tensor_0.get_size());    Tensor output_tensor_1 = infer_request.get_output_tensor(1);    float[] result_proto = output_tensor_1.get_data<float>((int)output_tensor_1.get_size());    Mat detect_data = new Mat(116, 8400, MatType.CV_32FC1, result_detect);    Mat proto_data = new Mat(32, 25600, MatType.CV_32F, result_proto);    detect_data = detect_data.T();    List<Rect> position_boxes = new List<Rect>();    List<int> class_ids = new List<int>();    List<float> confidences = new List<float>();    List<Mat> masks = new List<Mat>();    for (int i = 0; i < detect_data.Rows; i++)    {        Mat classes_scores = new Mat(detect_data, new Rect(4, i, 80, 1));//GetArray(i, 5, classes_scores);        Point max_classId_point, min_classId_point;        double max_score, min_score;        Cv2.MinMaxLoc(classes_scores, out min_score, out max_score,            out min_classId_point, out max_classId_point);        if (max_score > 0.25)        {            Mat mask = new Mat(detect_data, new Rect(4 + 80, i, 32, 1));//detect_data.Row(i).ColRange(4 + categ_nums, categ_nums + 36);            float cx = detect_data.At<float>(i, 0);            float cy = detect_data.At<float>(i, 1);            float ow = detect_data.At<float>(i, 2);            float oh = detect_data.At<float>(i, 3);            int x = (int)((cx - 0.5 * ow) * factor);            int y = (int)((cy - 0.5 * oh) * factor);            int width = (int)(ow * factor);            int height = (int)(oh * factor);            Rect box = new Rect();            box.X = x;            box.Y = y;            box.Width = width;            box.Height = height;            position_boxes.Add(box);            class_ids.Add(max_classId_point.X);            confidences.Add((float)max_score);            masks.Add(mask);        }    }    int[] indexes = new int[position_boxes.Count];    CvDnn.NMSBoxes(position_boxes, confidences, 0.5f, 0.5f, out indexes);    SegResult result = new SegResult();    Mat rgb_mask = Mat.Zeros(new Size((int)image.Size().Width, (int)image.Size().Height), MatType.CV_8UC3);    Random rd = new Random(); // Generate Random Numbers    for (int i = 0; i < indexes.Length; i++)    {        int index = indexes[i];        // Division scope        Rect box = position_boxes[index];        int box_x1 = Math.Max(0, box.X);        int box_y1 = Math.Max(0, box.Y);        int box_x2 = Math.Max(0, box.BottomRight.X);        int box_y2 = Math.Max(0, box.BottomRight.Y);        // Segmentation results        Mat original_mask = masks[index] * proto_data;        for (int col = 0; col < original_mask.Cols; col++)        {            original_mask.Set<float>(0, col, sigmoid(original_mask.At<float>(0, col)));        }        // 1x25600 -> 160x160 Convert to original size        Mat reshape_mask = original_mask.Reshape(1, 160);        // Split size after scaling        int mx1 = Math.Max(0, (int)((box_x1 / factor) * 0.25));        int mx2 = Math.Min(160, (int)((box_x2 / factor) * 0.25));        int my1 = Math.Max(0, (int)((box_y1 / factor) * 0.25));        int my2 = Math.Min(160, (int)((box_y2 / factor) * 0.25));        // Crop Split Region        Mat mask_roi = new Mat(reshape_mask, new OpenCvSharp.Range(my1, my2), new OpenCvSharp.Range(mx1, mx2));        // Convert the segmented area to the actual size of the image        Mat actual_maskm = new Mat();        Cv2.Resize(mask_roi, actual_maskm, new Size(box_x2 - box_x1, box_y2 - box_y1));        // Binary segmentation region        for (int r = 0; r < actual_maskm.Rows; r++)        {            for (int c = 0; c < actual_maskm.Cols; c++)            {                float pv = actual_maskm.At<float>(r, c);                if (pv > 0.5)                {                    actual_maskm.Set<float>(r, c, 1.0f);                }                else                {                    actual_maskm.Set<float>(r, c, 0.0f);                }            }        }        // 预测        Mat bin_mask = new Mat();        actual_maskm = actual_maskm * 200;        actual_maskm.ConvertTo(bin_mask, MatType.CV_8UC1);        if ((box_y1 + bin_mask.Rows) >= (int)image.Size().Height)        {            box_y2 = (int)image.Size().Height - 1;        }        if ((box_x1 + bin_mask.Cols) >= (int)image.Size().Width)        {            box_x2 = (int)image.Size().Width - 1;        }        // Obtain segmentation area        Mat mask = Mat.Zeros(new Size((int)image.Size().Width, (int)image.Size().Height), MatType.CV_8UC1);        bin_mask = new Mat(bin_mask, new OpenCvSharp.Range(0, box_y2 - box_y1), new OpenCvSharp.Range(0, box_x2 - box_x1));        Rect roi1 = new Rect(box_x1, box_y1, box_x2 - box_x1, box_y2 - box_y1);        bin_mask.CopyTo(new Mat(mask, roi1));        // Color segmentation area        Cv2.Add(rgb_mask, new Scalar(rd.Next(0, 255), rd.Next(0, 255), rd.Next(0, 255)), rgb_mask, mask);        result.add(class_ids[index], confidences[index], position_boxes[index], rgb_mask.Clone());    }    Mat masked_img = new Mat();    // Draw recognition results on the image    for (int i = 0; i < result.count; i++)    {        Cv2.Rectangle(image, result.datas[i].box, new Scalar(0, 0, 255), 2, LineTypes.Link8);        Cv2.Rectangle(image, new Point(result.datas[i].box.TopLeft.X, result.datas[i].box.TopLeft.Y + 30),            new Point(result.datas[i].box.BottomRight.X, result.datas[i].box.TopLeft.Y), new Scalar(0, 255, 255), -1);        Cv2.PutText(image, CocoOption.lables[result.datas[i].index] + "-" + result.datas[i].score.ToString("0.00"),            new Point(result.datas[i].box.X, result.datas[i].box.Y + 25),            HersheyFonts.HersheySimplex, 0.8, new Scalar(0, 0, 0), 2);        Cv2.AddWeighted(image, 0.5, result.datas[i].mask, 0.5, 0, masked_img);    }    string output_path = Path.Combine(Path.GetDirectoryName(Path.GetFullPath(image_path)),        Path.GetFileNameWithoutExtension(image_path) + "_result.jpg");    Cv2.ImWrite(output_path, masked_img);    Slog.INFO("The result save to " + output_path);    Cv2.ImShow("Result", masked_img);    Cv2.WaitKey(0);}

static void yolov9_seg_with_process(string model_path, string image_path, string device){    // -------- Step 1. Initialize OpenVINO Runtime Core --------    Core core = new Core();    // -------- Step 2. Read inference model --------    Model model = core.read_model(model_path);    OvExtensions.printf_model_info(model);    PrePostProcessor processor = new PrePostProcessor(model);    Tensor input_tensor_pro = new Tensor(new OvType(ElementType.U8), new Shape(1, 640, 640, 3));    InputInfo input_info = processor.input(0);    InputTensorInfo input_tensor_info = input_info.tensor();    input_tensor_info.set_from(input_tensor_pro).set_layout(new Layout("NHWC")).set_color_format(ColorFormat.BGR);
    PreProcessSteps process_steps = input_info.preprocess();    process_steps.convert_color(ColorFormat.RGB).resize(ResizeAlgorithm.RESIZE_LINEAR)        .convert_element_type(new OvType(ElementType.F32)).scale(255.0f).convert_layout(new Layout("NCHW"));    Model new_model = processor.build();    // -------- Step 3. Loading a model to the device --------    CompiledModel compiled_model = core.compile_model(new_model, device);    // -------- Step 4. Create an infer request --------    InferRequest infer_request = compiled_model.create_infer_request();    // -------- Step 5. Process input images --------    Mat image = new Mat(image_path); // Read image by opencvsharp    int max_image_length = image.Cols > image.Rows ? image.Cols : image.Rows;    Mat max_image = Mat.Zeros(new OpenCvSharp.Size(max_image_length, max_image_length), MatType.CV_8UC3);    Rect roi = new Rect(0, 0, image.Cols, image.Rows);    image.CopyTo(new Mat(max_image, roi));    Cv2.Resize(max_image, max_image, new OpenCvSharp.Size(640, 640));    float factor = (float)(max_image_length / 640.0);    // -------- Step 6. Set up input data --------    start = DateTime.Now;    Tensor input_tensor = infer_request.get_input_tensor();    Shape input_shape = input_tensor.get_shape();    byte[] input_data = new byte[input_shape[1] * input_shape[2] * input_shape[3]];    //max_image.GetArray<int>(out input_data);    Marshal.Copy(max_image.Ptr(0), input_data, 0, input_data.Length);    IntPtr destination = input_tensor.data();    Marshal.Copy(input_data, 0, destination, input_data.Length);    // -------- Step 7. Do inference synchronously --------  ... ...(后续与上文代码一致)}

static void Main(string[] args){    string model_path = "";    string image_path = "";    string device = "AUTO";    if (args.Length == 0)    {        if (!Directory.Exists("./model"))        {            Directory.CreateDirectory("./model");        }        if (!File.Exists("./model/yolov9-c-converted.xml") && !File.Exists("./model/yolov9-c-converted.bin"))        {            if (!File.Exists("./model/yolov9-c-converted.tar"))            {                _ = Download.download_file_async("https://github.com/guojin-yan/OpenVINO-CSharp-API-Samples/releases/download/Model/yolov9-c-converted.tar",                    "./model/yolov9-c-converted.tar").Result;            }            Download.unzip("./model/yolov9-c-converted.tar", "./model/");        }        if (!File.Exists("./model/test_det_01.jpg"))        {            _ = Download.download_file_async("https://github.com/guojin-yan/OpenVINO-CSharp-API-Samples/releases/download/Image/test_det_01.jpg",                "./model/test_det_01.jpg").Result;        }        model_path = "./model/yolov9-c-converted.xml";        image_path = "./model/test_det_01.jpg";    }    else if (args.Length >= 2)    {        model_path = args[0];        image_path = args[1];        device = args[2];    }    else    {        Console.WriteLine("Please enter the correct command parameters, for example:");        Console.WriteLine("> 1. dotnet run");        Console.WriteLine("> 2. dotnet run <model path> <image path> <device name>");    }    // -------- Get OpenVINO runtime version --------    OpenVinoSharp.Version version = Ov.get_openvino_version();    Slog.INFO("---- OpenVINO INFO----");    Slog.INFO("Description : " + version.description);    Slog.INFO("Build number: " + version.buildNumber);    Slog.INFO("Predict model files: " + model_path);    Slog.INFO("Predict image  files: " + image_path);    Slog.INFO("Inference device: " + device);    Slog.INFO("Start yolov9 model inference.");    yolov9_det(model_path, image_path, device);    yolov9_det_with_process(model_path, image_path, device);}

dotnet build

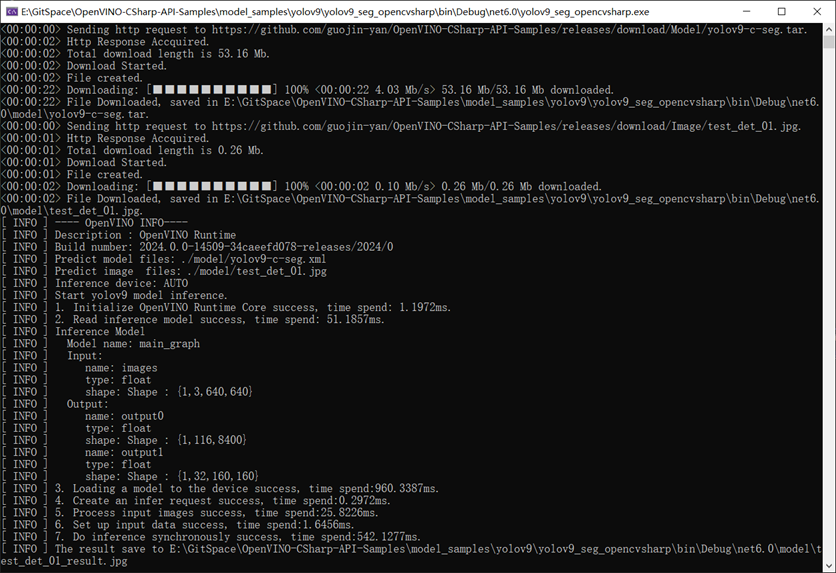

dotnet run --no-build
